LG DIGITAL SIGNAGE 22SM3G-B
- 22SM3G-B จอขนาดเล็กกะทัดรัด 22″ ที่จะช่วยให้ติดตั้งง่าย ใช้งานง่าย วางบนโต๊ะ บนเคาท์เตอร์ หรือบอร์ดโฆษณาแทนใบปลิว
- All-in-One ไม่ต้องต่อ PC / ไม่ต้องต่อ Signage Box / ไม่ต้องต่อ Android Box หรืออุปกรณ์ใดๆ ครบจบในจอ
- ให้ภาพคมชัดด้วยจอแบบ IPS ที่ความละเอียดระดับ FHD
| Weight | 3340 g |
|---|---|
| Dimensions | 51.03 × 30.21 × 5.38 cm |
| Connectivity | HDMI x1, USB2.0 x1, Audio In x1, RS232C In x1, RJ45 (LAN), IR In |
| Warranty | 3 Year |
| Screen Size |
22SM3G-B
Specification
Panel
| Screen Size | 21.5” |
| Panel Technology | IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | 1,920 X 1,080 (FHD) |
| Refresh Rate | 60 Hz |
Mechanical Specification
| Bezel Color | Black |
| Bezel Width | 16.3 mm (Even Bezel) |
| Weight (Head) | 3.34 kg |
| Packed Weight | 4.74 kg |
| Monitor Dimensions (W × H × D) | 510.3 x 302.1 x 53.8 mm |
Feature
| Key Feature | Internal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN,Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, webRTC, Pro:Idiom |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240 V~, 50 / 60 Hz |
| Power Type | Built-In Power |
| Power Consumption (Typ. / Max.) | 30 W / 33 W |
| Power Consumption (Smart Energy Saving) | 15 W ± 5 % |
Certification
| Safety | CB / NRTL |
| EMC | FCC Class “A” / CE |
| ErP | Yes (EU Only) |
| ePEAT (US Only) | No |
OPS Compatibility
| OPS Type Compatible | No |
| OPS Power Built In | No |
Software Compatibility
| Content Management Software | SuperSign CMS |
| Control and Monitoring Software | SuperSign Control / Control+ |
| LG ConnectedCare | Yes (The availability of the “LG ConnectedCare” service differs by region.) |

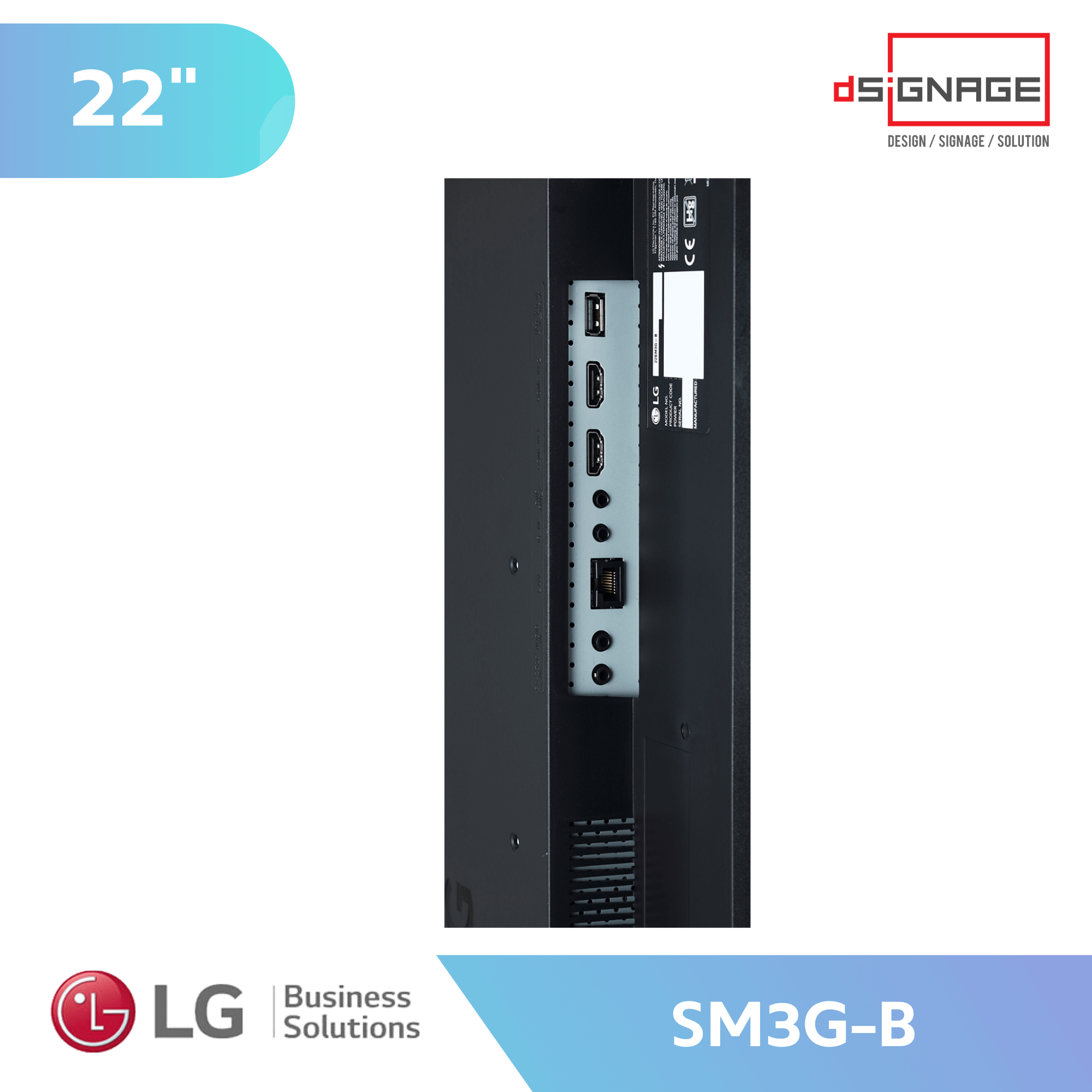

Connectivity
| Input | HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In |
| Output | – |
| External Control | RS232C In (Phone-jack), RJ45 (LAN) In, IR In |
Sound
| Speaker | Yes (1 W x 2 ea) |
Accessory
| Basic | Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet |
22″ Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there’s no need to purchase additional software or media players.
A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.
Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
Wireless Solution
22SM3G operates as a virtual router which can be a wireless access point for mobile devices.
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Care Service with LG ConnectedCare
The maintenance gets easier and faster with the optional service LG ConnectedCare*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
* The availability of “LG ConnectedCare” service can differ by region, so please contact the LG sales representative in your region for further details.
