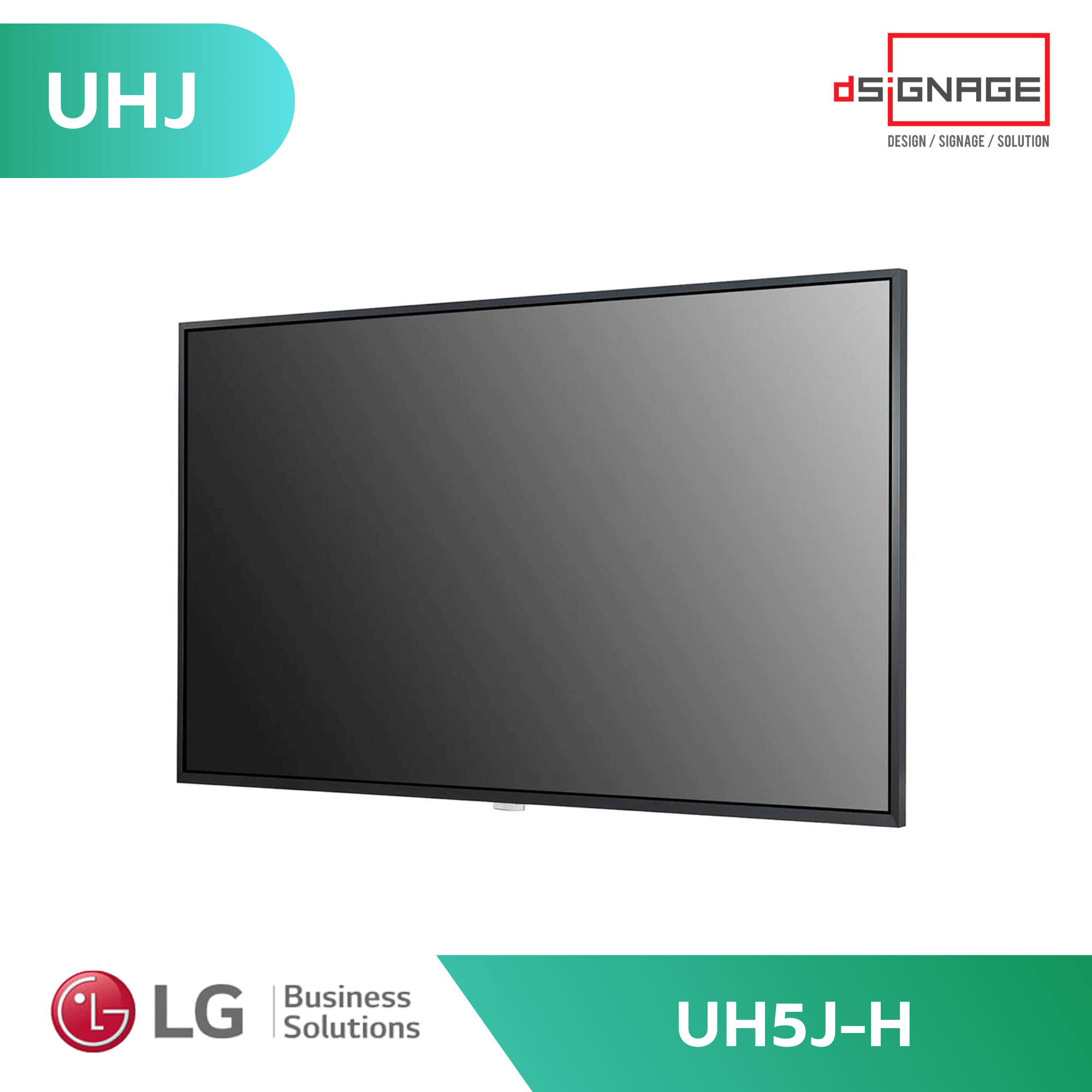

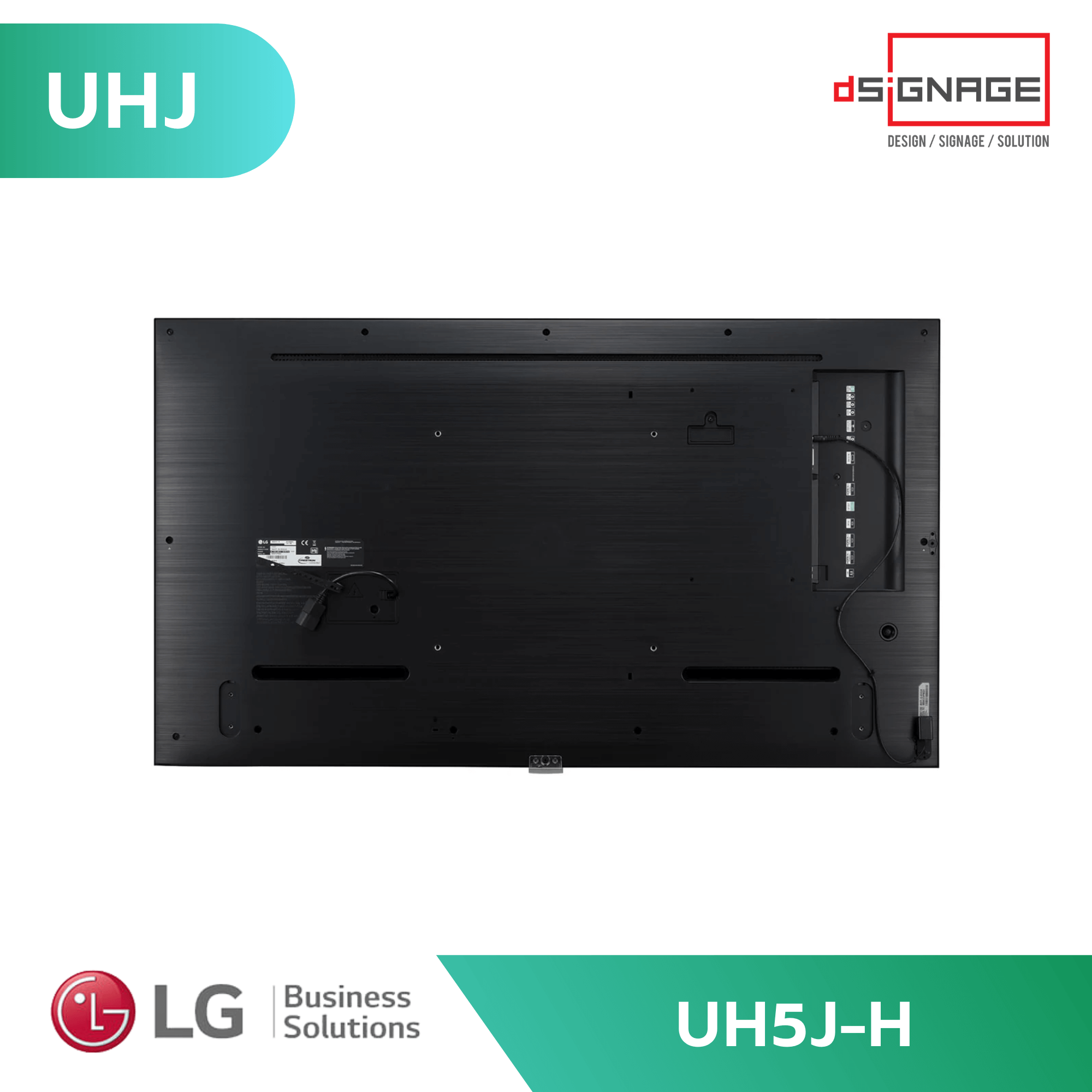

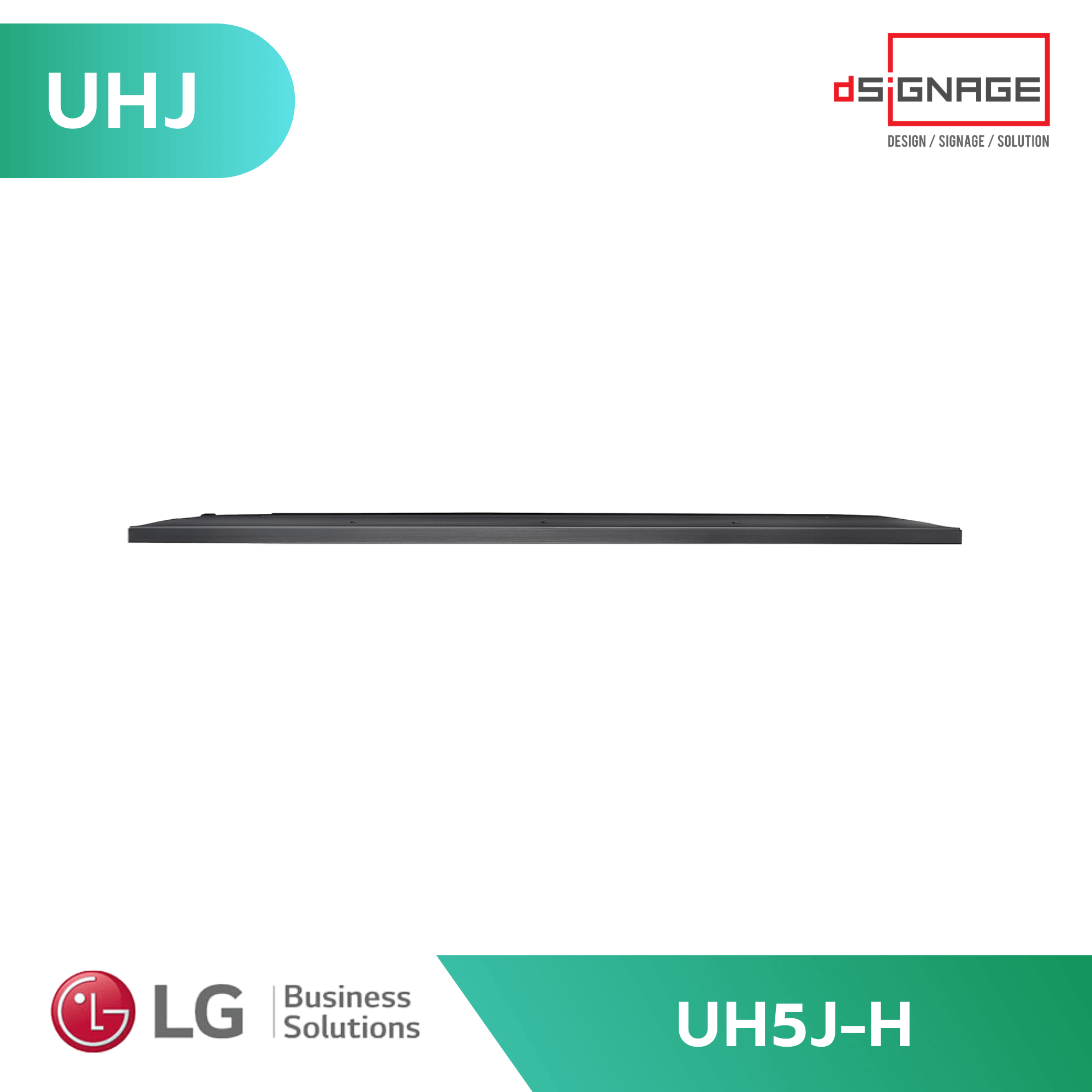

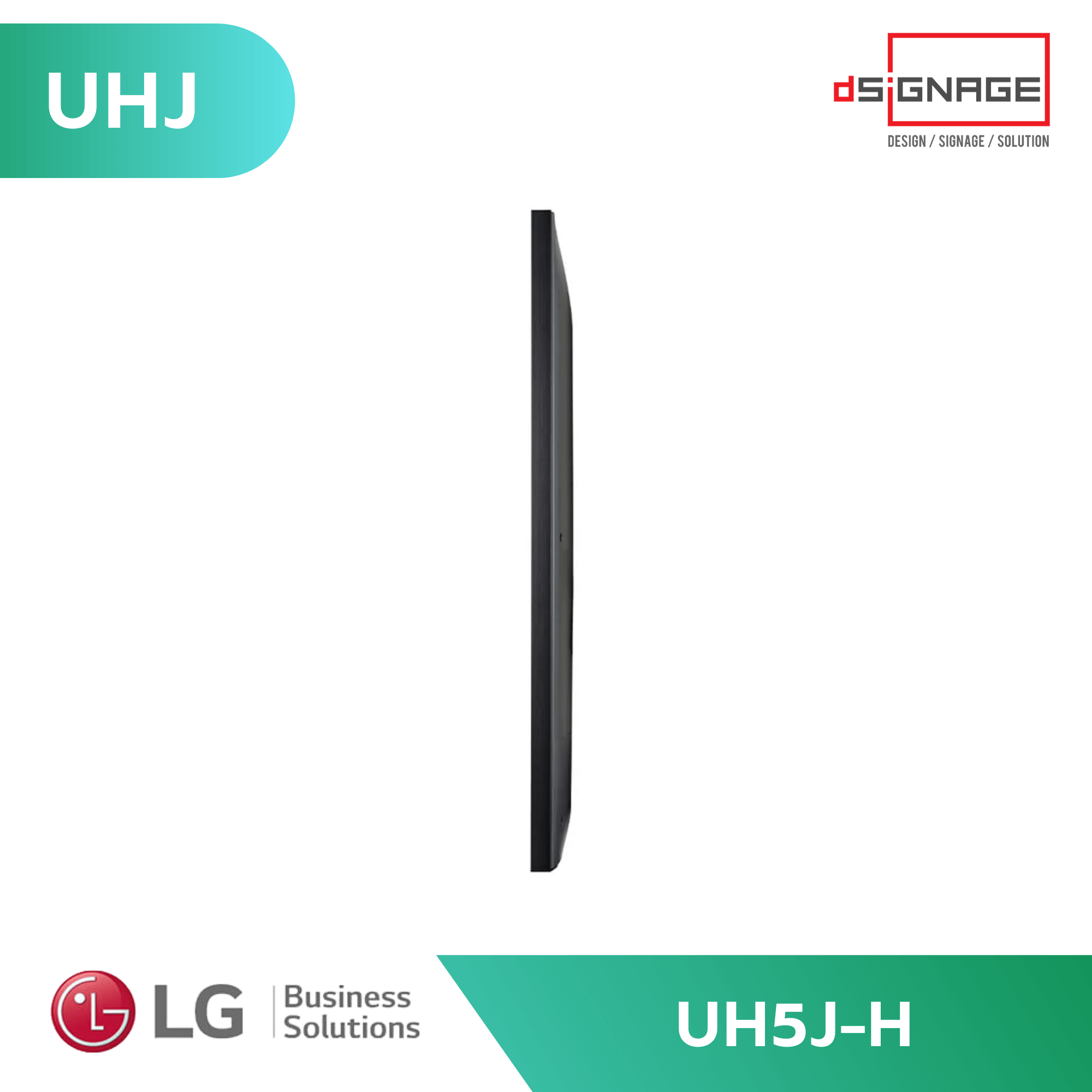

LG DIGITAL SIGNAGE 65UH5J-H
LG UH5J-H จอโฆษณา Digital Signage ความสว่างสูง
- ผิวหน้าจอแบบด้านช่วยลดการเกิดเงาสะท้อน
- ความสว่างหน้าจอสูงถึง 500nit ให้ภาพคมชัดแม้ในสถานที่มีแสงสว่างมาก
- จอบางสุดเพียง 4 มิลลิเมตร ติดตั้งสวยงาม
- ให้ภาพคมชัดระดับ 4K
- ให้ประสิทธิภาพในการแสดงผลสูงสุดด้วย webOS
- พร้อมระบบจัดการสื่อโฆษณาจากส่วนกลาง ใช้งานง่าย
| Weight | 28200 g |
|---|---|
| Dimensions | 145.33 × 84.4 × 3.99 cm |
| Warranty | 3 Year |
| Connectivity | AUDIO IN (x1), AUDIO OUT (x1), DISPLAY PORT (x1), DVI-D IN (x1), HDMI (x3), HDMI OUT (x1), IR IN (x1), RJ45 IN LAN (x1), RS-232C IN (x1), RS-232C OUT (x1), USB (x1), WIFI |
| Screen Size |
Specification
49UH5J-H
Panel
| Screen Size | 65″ |
| Panel Technology | IPS |
| Back Light Type | Edge |
| Aspect Ratio | 16:9 |
| Native Resolution | 3,840 X 2,160 (UHD) |
Mechanical Specification
| Bezel Color | Black |
| Bezel Width | T/R/L: 9.9mm, B: 14.4mm |
| Weight (Head) | 28.2 Kg |
| Weight (Head+Stand) | 28.8 Kg |
| Packed Weight | 35.0 Kg |
Key Feature (Hardware)
| Internal Memory | 16 GB |
| Wi-Fi | Yes |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | Yes |
| Acceleration(Gyro) Sensor | Yes |
Key Feature (Software)
| webOS ver. | webOS 6.0 |
| Embedded CMS | Local Contents Scheduling, Group Manager |
| USB Plug & Play | Yes |
| Fail over | Yes |
| Image Customization | Booting Logo Image, No Signal Image |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 130W / 190W |
| Smart Energy Saving | 91 W |
| DPM | 0.5 W |
| Power off | 0.5 W |
| BTU (British Thermal Unit) | 444 BTU/Hr(Typ.), 649 BTU/Hr(Max.) |
Certification
| Carbon Trust Certified (CO2 Measured) | |
| Safety | CB / NRTL |
| EMC | FCC Class “A” / CE / KC |
| ErP | Yes (NewErP) |
OPS Compatibility
| OPS Type Compatible | Yes |
Software Compatibility
| SuperSign CMS | Yes |
| SuperSign Control / Control+ | Yes |
| SuperSign WB | Yes |
| SuperSign Cloud | Yes |
| SuperSign Media Editor | Yes |
Connectivity
| Input | HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (HDCP2.2/1.3), DVI-D (HDCP1.4), Audio, RS232C (4pin Phone-jack), RJ45(LAN), IR, USB (USB2.0 Type A(1)), Daisy Chain (HDMI, DP) |
| Output | HDMI, Audio, RS232C (4pin Phone-jack), Daisy Chain (HDMI) |
Sound
| Speaker | Yes (10W X 2) |
Language
| OSD | English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic |
Accessory
| Basic | Remote Controller (include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender |
| Optional | Stand (ST-653T), Wall bracket (LSW240B), OPS Kit (KT-OPSF) |
Special Feature
| Tilt (Facedown) | Yes (Max 30º degree, 30ºC temperature, humidity 50%) |
| IP Rating | IP5X |
| Conformal Coating (Power Board) | Yes |
Digital Signage LG UH5J-H Series
New High Haze UHD
Standard Signage
* All images in this web page are for illustrative purposes only.
Proper Display Brightness
With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.
* Actual images available may differ from the example images shown.
High-Performance
with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
* Actual images (signage display) available may differ from the example images shown.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
* In Korea, the name is not Promota, but Mustard.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Compatible with
AV Control System
The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control
