• “จอเดียวจบ” ไม่ต้องต่อ PC / ไม่ต้องต่อ Signage Box / ไม่ต้องต่อ Android Box หรืออุปกรณ์ใดๆ
  • ให้ภาพคมชัดระดับ UHD (4K)
  • สะกดทุกสายตา ด้วยภาพความละเอียดสูง ให้ภาพคมชัด สีสันสมจริง มาพร้อมจอดีไซน์ใหม่ บางเฉียบ เพิ่มความหรูหราให้กับธุรกิจคุณมากยิ่งขึ้น
  • พร้อมแสดงสื่อโฆษณาของคุณด้วยความละเอียดระดับ UHD แม้สื่อโฆษณาของคุณจะมีความละเอียดต่ำกว่า ด้วยนวัตกรรมการปรับภาพที่มีเฉพาะ Samsung
  • เปิดประสบการณ์ใหม่ ที่สุดของความสมจริง ด้วยเทคโนโลยี Dynamic Crystal Color ช่วยให้จอแสดงสีได้กว่าพันล้านสี
  • ขนาดจอ 85″
Weight 48400 g
Dimensions 189.78 × 108.08 × 5.67 cm

3 Year

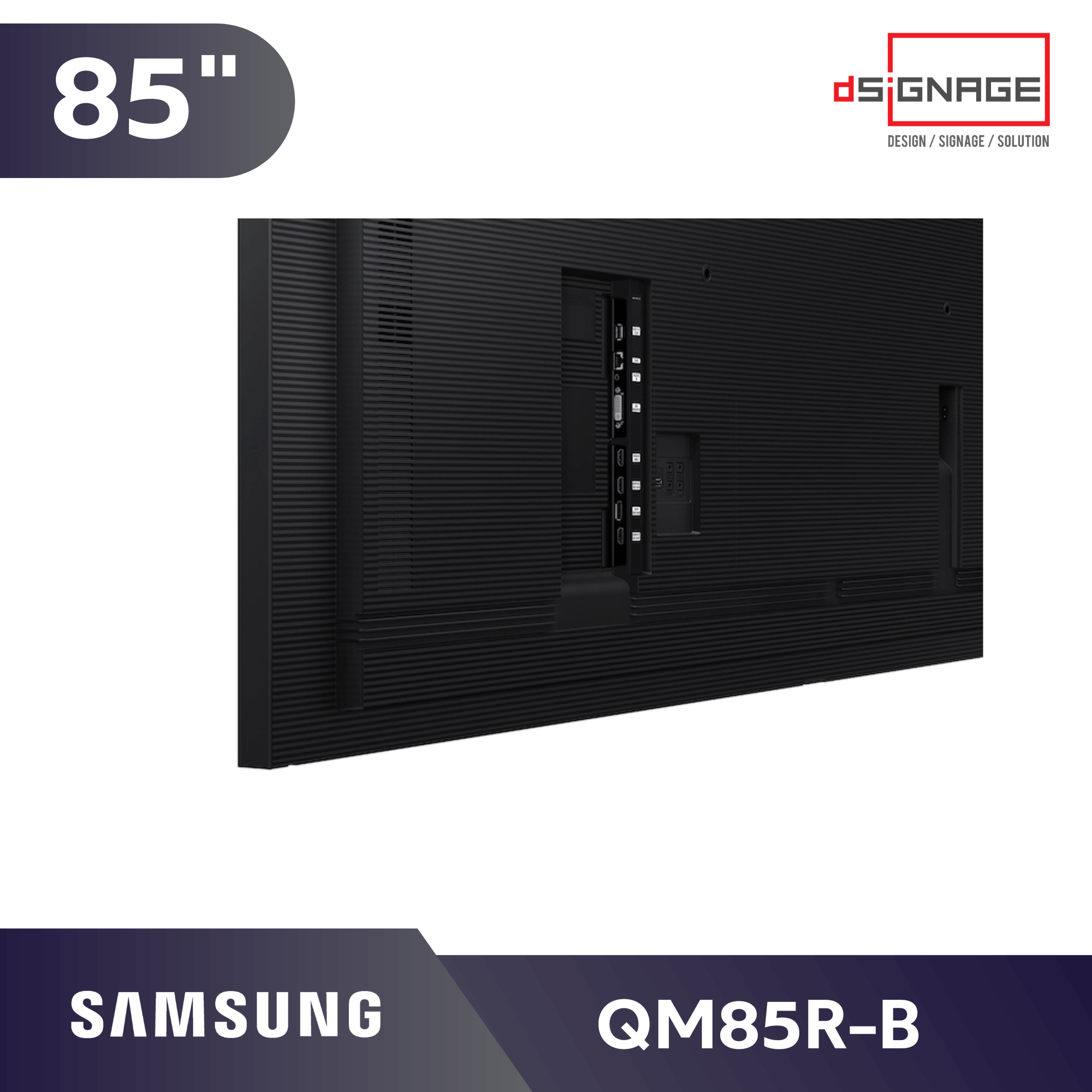

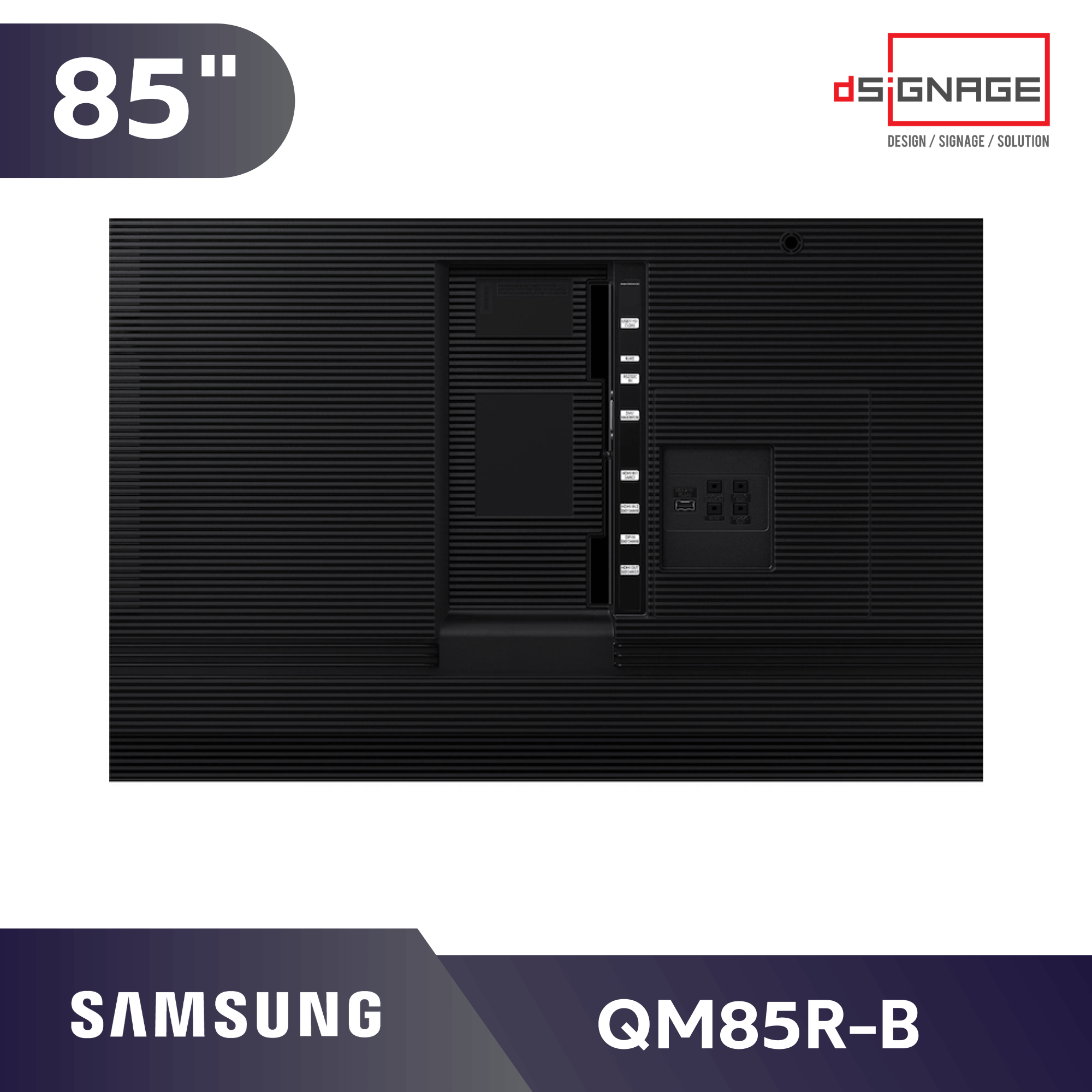

HDMI x2 , USB x2 , Audio Out Stereo mini Jack , LAN , WiFi

Screen Size



Screen Size 85″
Resolution 3,840 x 2,160
Aspect Ratio 1872.0(H) x 1053.01(V)
Brightness 500
Contrast Ratio (Typical) 4000:01:00
Viewing Angle (H/V) 178/178
Response Time 8ms(Typ.)
Operation Hours 24/7
Pixel Pitch (HxV) 0.4875 x 0.4875
Color Gamut 92% (DCI-P3, CIE 1976)
Haze 28.00%
H-Scanning Frequency 30 ~ 81kHZ
Maximum Pixel Frequency 594MHz
V-Scanning Frequency 48 ~ 75HZ
Active Display Area (mm) 1872.0(H) x 1053.01(V)
Display Colors 16.7M(True Display) 1.07B(Ditherd 10bit)
Dynamic C/R MEGA
Panel Technology Edge LED BLU
Anti-glare Yes
RGB DVI-D, Display Port 1.2 (1)
Video HDMI 2.0 (2)
Audio Stereo mini Jack, DVI, HDMI/Audio(Common)
USB USB 2.0 x 2
RGB HDMI 2.0 (Loop-out)
Video N/A
Audio Stereo mini Jack
Power Out N/A
External Control RS232C(in/out) thru stereo jack, RJ45
External Sensor IR
Power Supply AC 100 – 240 V, 50/60 Hz
Power Consumption (Typical/Max)
Max[W/h] 308
Typical[W/h]: 217
Rating[W/h] 280
BTU (Max) 1050.3
Sleep Mode 0.5
Off mode N/A
Type Internal
Environmental Conditions
Operating Temperature 0℃~ 40℃
Operating Humidity 10~80%
Key UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
H/W Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x Rating, Wi-Fi
S/W Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
24/7 Operation Yes
Speaker Type Built in Speaker(10W + 10W)
Orientation Landscape / Portrait
Internal Player
Processor Cortex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory
L1 Instruction Cache 48KB
L1 Data Cache 32KB
L2 Cache 2MB
Clock Speed 1.7GHz
Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit
Graphic resolution 1920×1080
Output resolution 3840×2160 (Scale up from graphic processing result.)
Storage 8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG
IO Ports USB 2.0
Operating System Tizen 4.0 (VDLinux)
Set (W x H x D) 1897.8 x 1080.8 x 56.7
Packaging (W x H x D) 2090 x 1247 x 260
Product Weight 48.4kg
Package Weight 63.7kg
Included in Box Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional Wall Mount Kit WMN8200SG (Land Only)
Mechanical Specs
VESA Mount 600 X 400
Bezel Width (Top/Side/Bot) (mm) 10.9mm(U/L/R), 12.9mm(B)
Certification and Compliance
EMC Class A
Safety 60950-1
Security 802.1x(WPA2 Enterprise) (‘20.1~) : EAP-TLS, EAP-TTLS, EAP-PEAP

Features QM85R-B

Time to upscale your display

Samsung’s new QMR-B series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color, all in a slim design.

Incredible 4K picture quality

Empower your customers to experience pure visual innovation with lifelike images in sharper picture quality than ever before.

Intelligent UHD upscaling

Crystal Processor 4K

QMR-B’s UHD upscaling feature is made possible by Samsung’s Crystal Processor 4K. This innovative technology allows the display to play lower resolution content at UHD-level quality while also improving the visibility of on-screen text and images.

Marvel at the lifelike Color expression

Dynamic Crystal Display

Immerse your customers in every picture with a wider range of color. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

Perfect view with non-glare display

The QMR-B series features reliable, non-glare panels that provide better visibility from all angles, any time of day, allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial (such as airports and commuter stations).

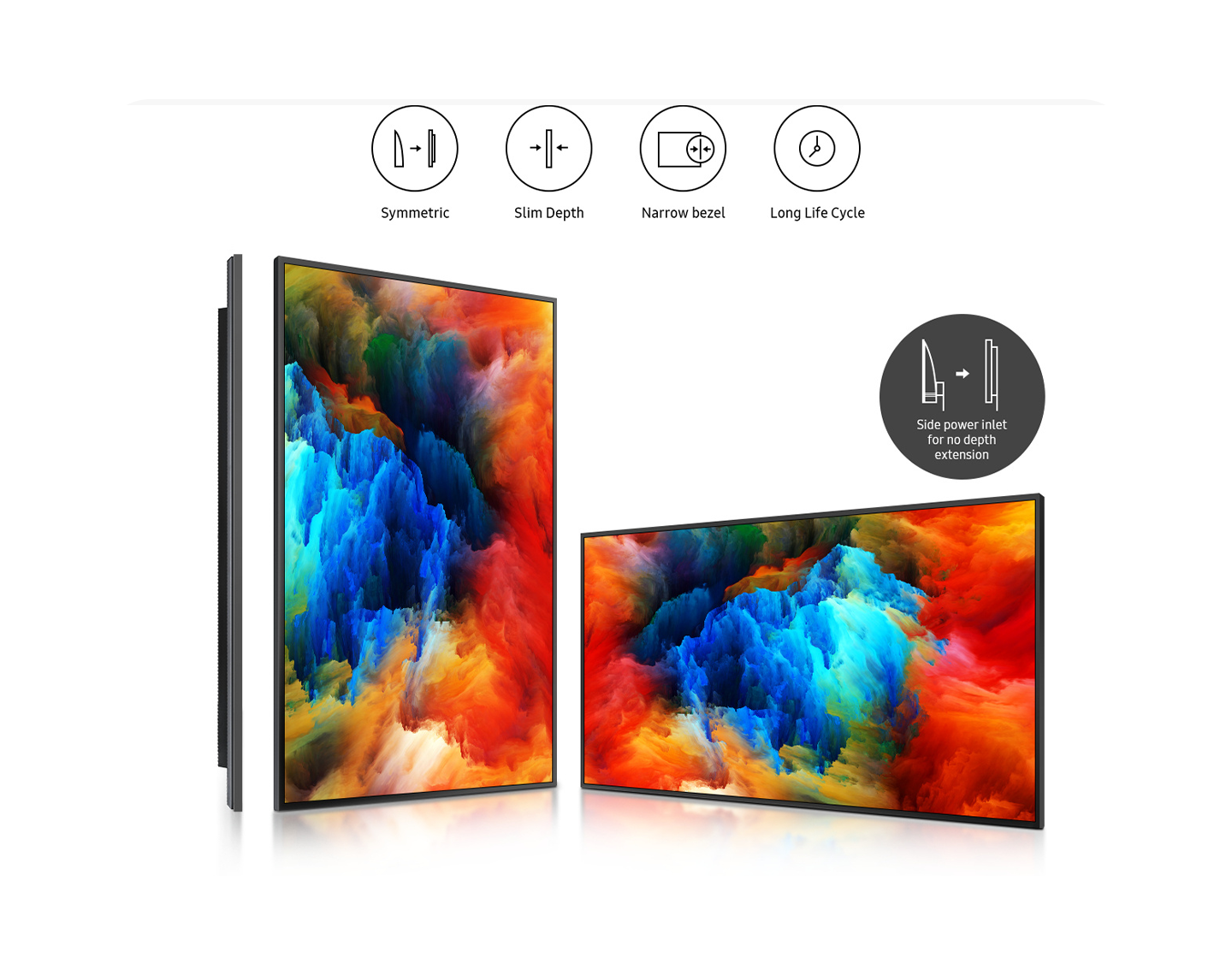

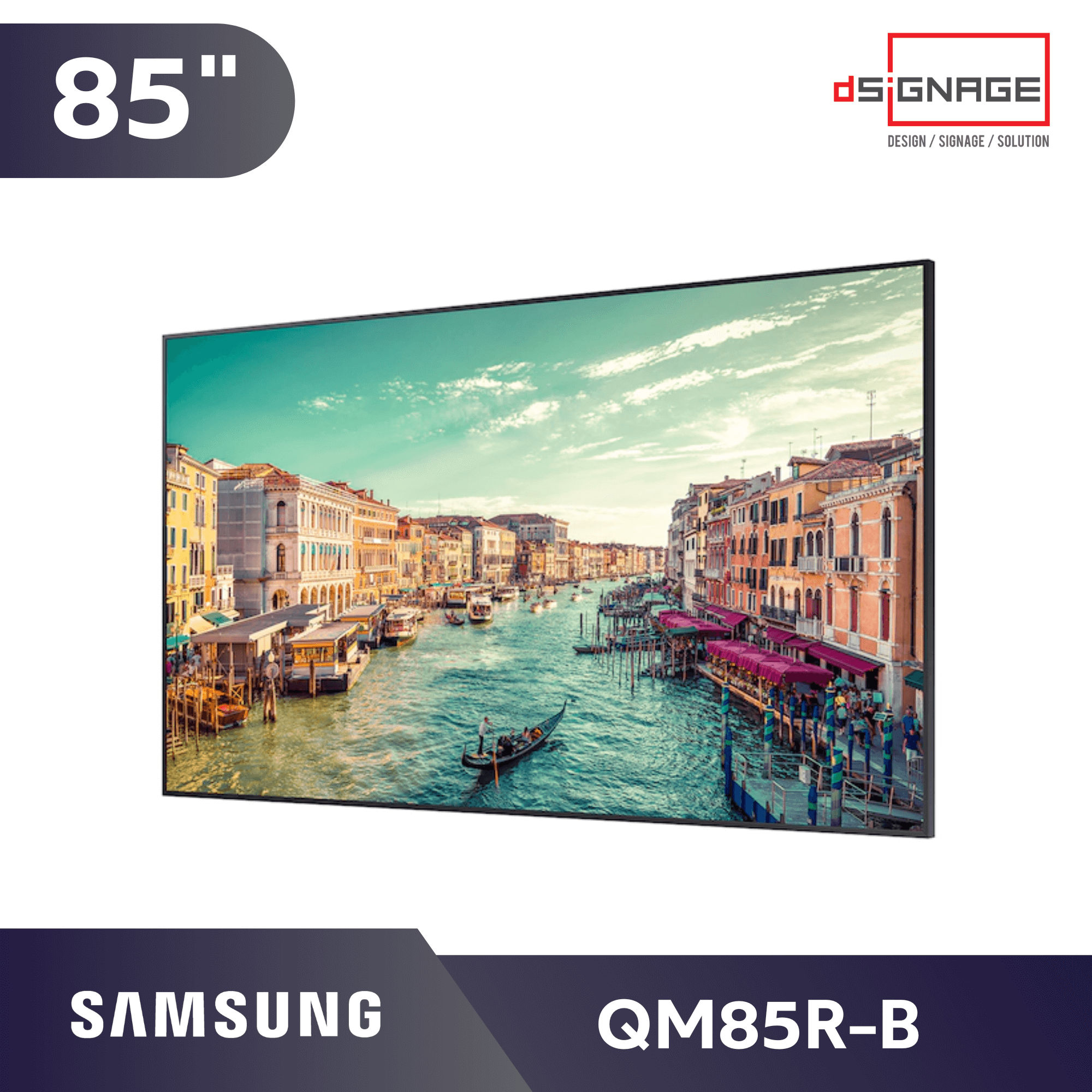

Slim and symmetrical design

Slim, symmetrical design that will stand the test of time and ensure the QMR-B series blends seamlessly into any environment, with simple installation to get your display up and running as soon as possible.

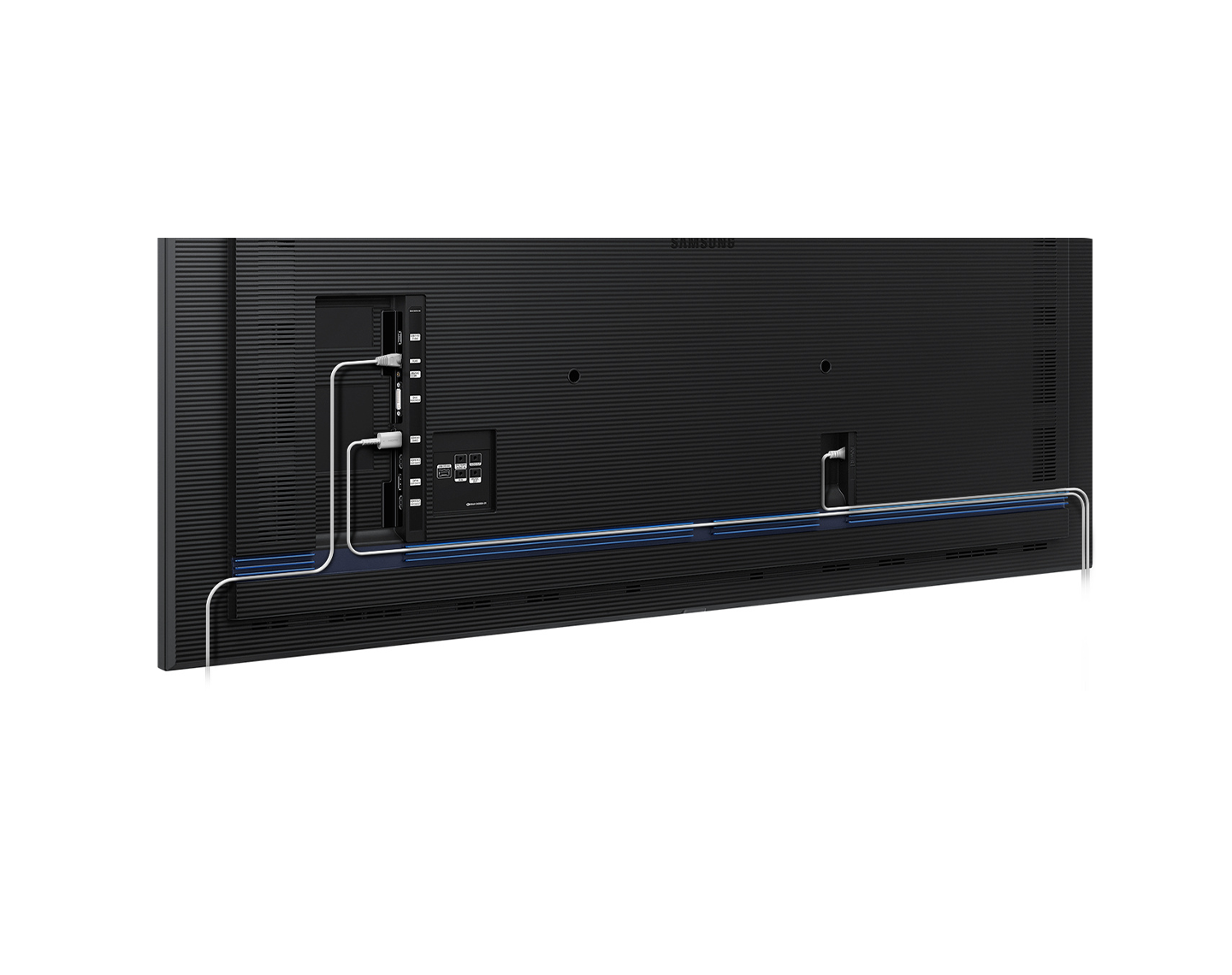

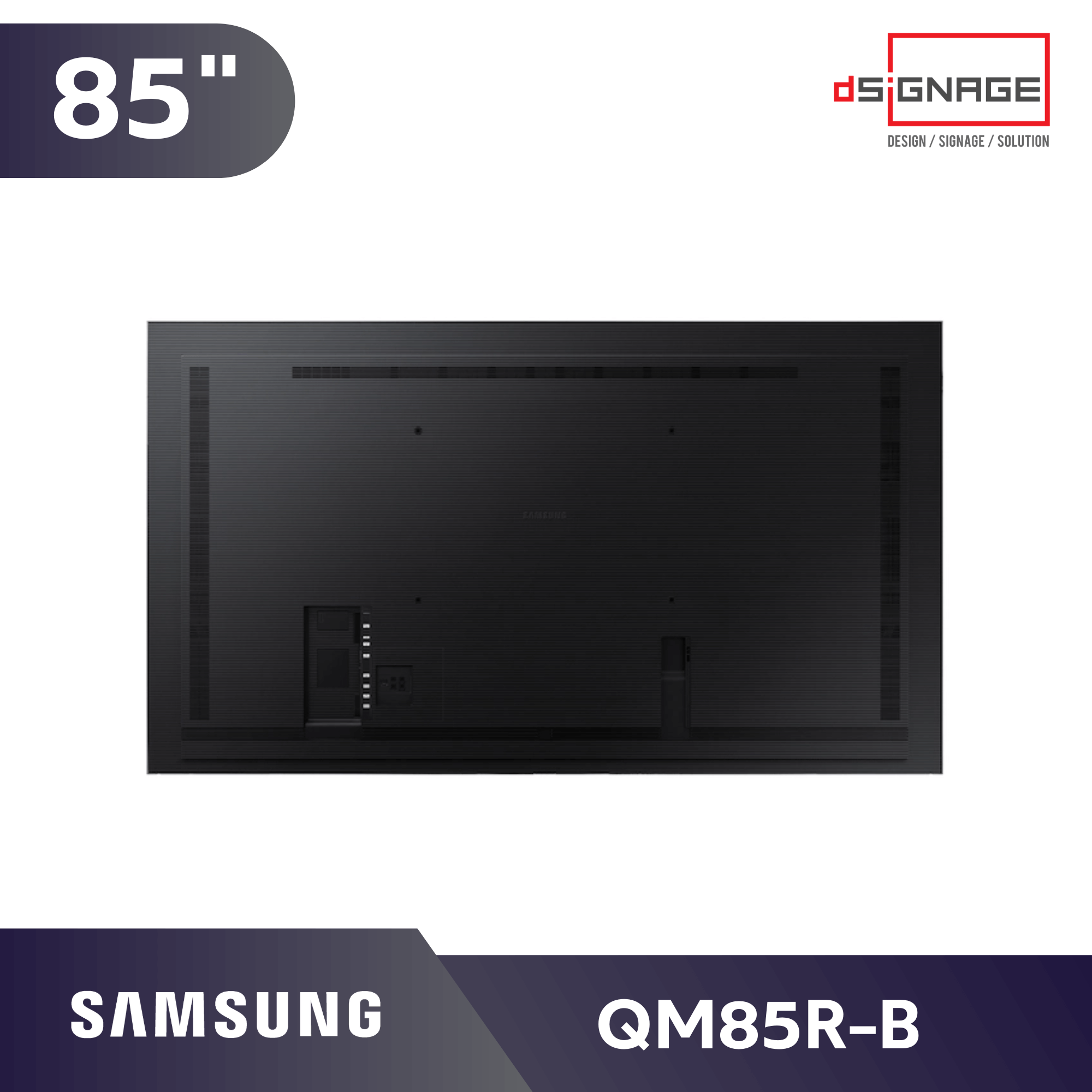

Clean cable management

With QMR-B’s new cable guide feature, retailers are able to tuck messy cables away from view. This allows for a clean and visually appealing shopping experience for customers, even when the back of the display is visible.

Powerful, all-in-one solution

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards, and secured protection.
