SAMSUNG DIGITAL SIGNAGE SH37C
- “จอเดียวจบ” ไม่ต้องต่อ PC / ไม่ต้องต่อ Signage Box / ไม่ต้องต่อ Android Box หรืออุปกรณ์ใดๆ
- จอกว้างอัตราส่วน 16:4.5 Stretched Display
- ความสว่างสูง 700nit ให้ภาพคมชัดแม้อยู่ในที่แสงมาก
- ทนทาน เปิดใช้งานได้ต่อเนื่อง 24 ชั่วโมง
- ขนาดจอ 37″
| Weight | 6.3 kg |
|---|---|
| Dimensions | 92.33 × 27.71 × 4.48 cm |
| Warranty | |
| Screen Size | |
| Connectivity | AUDIO OUT (x1), BT, HDMI (x3), IR IN (x1), RJ45 IN LAN (x1), RS-232C IN (x1), RS-232C OUT (x1), USB (x2), WIFI |
Specifications
Display
Diagonal Size
37″
Resolution
1,920 x 540
Brightness (Typ)
700 nit
Viewing Angle (H/V)
178/178
Color Gamut
72% (NTSC)
H-Scanning Frequency
33.6 ~ 36.6KHz
V-Scanning Frequency
47 ~ 63Hz
Operation Time Support
24/7
Panel Type
VA
Pixel Pitch (HxV)
0.47(H) x 0.47(V)
Contrast Ratio
4,000:1
Response Time
8ms
Glass Haze
28%
Maximum Pixel Frequency
48MHz
Contrast Ratio (Dynamic)
Mega
Connectivity
HDMI In
3
Version of HDMI
1.4
USB
2
Audio In
No
RS232 In
Yes
RJ45 In
Yes
Bluetooth
Yes
DP In
No
Version of HDCP
2.2
IR In
Yes
Audio Out
Stereo Mini Jack
RS232 Out
Yes
WiFi
Yes
Power
Power Supply
AC100-240V 50/60Hz
Power Consumption (Sleep Mode)
0.5 W
Power Consumption (On Mode)
77 W
Dimension
Set Dimension (WxHxD)
923.3 x 277.6 x 44.8 mm
Package Dimension (WxHxD)
1112 x 363 x 122 mm
Weight
Set Weight
6.3 kg
Package Weight
8.4 kg
Operation Conditions
Temperature
0℃~ 40℃
Humidity
10 ~ 80%, non-condensing
Mechanical Specification
VESA Mount
400 x 200 mm
Bezel Color
Black
Bezel Width
9.8(Top/Bottom), 7.9(Left/Right)
Frame Material
Non-Glossy
Optional Feature
Mount
No
Stand
No
SoC
OS Version
Tizen 7.0
Flash Memory Size
8GB
Certification and Compliance
EMC
Class A
Safety
60950-1, 62368-1

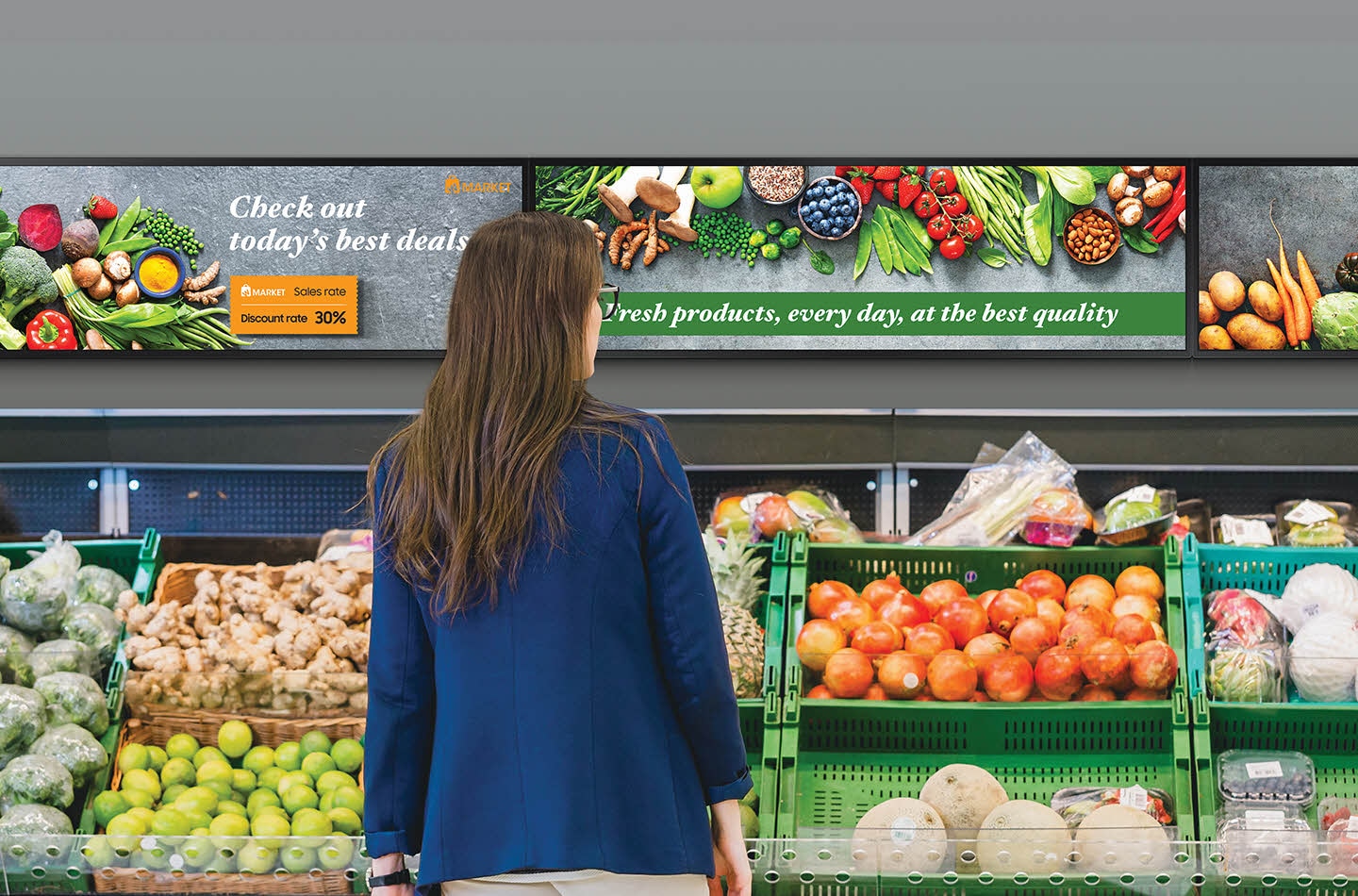

Stretch your messaging reach
Deliver impactful messages in places you never could before. The Samsung SH37C stretched widescreen display delivers impactful messages that are easy to read, regardless of your environment. You can take full advantage of narrow areas, whether horizontal or vertical, and connect with customers in unexpected new ways.

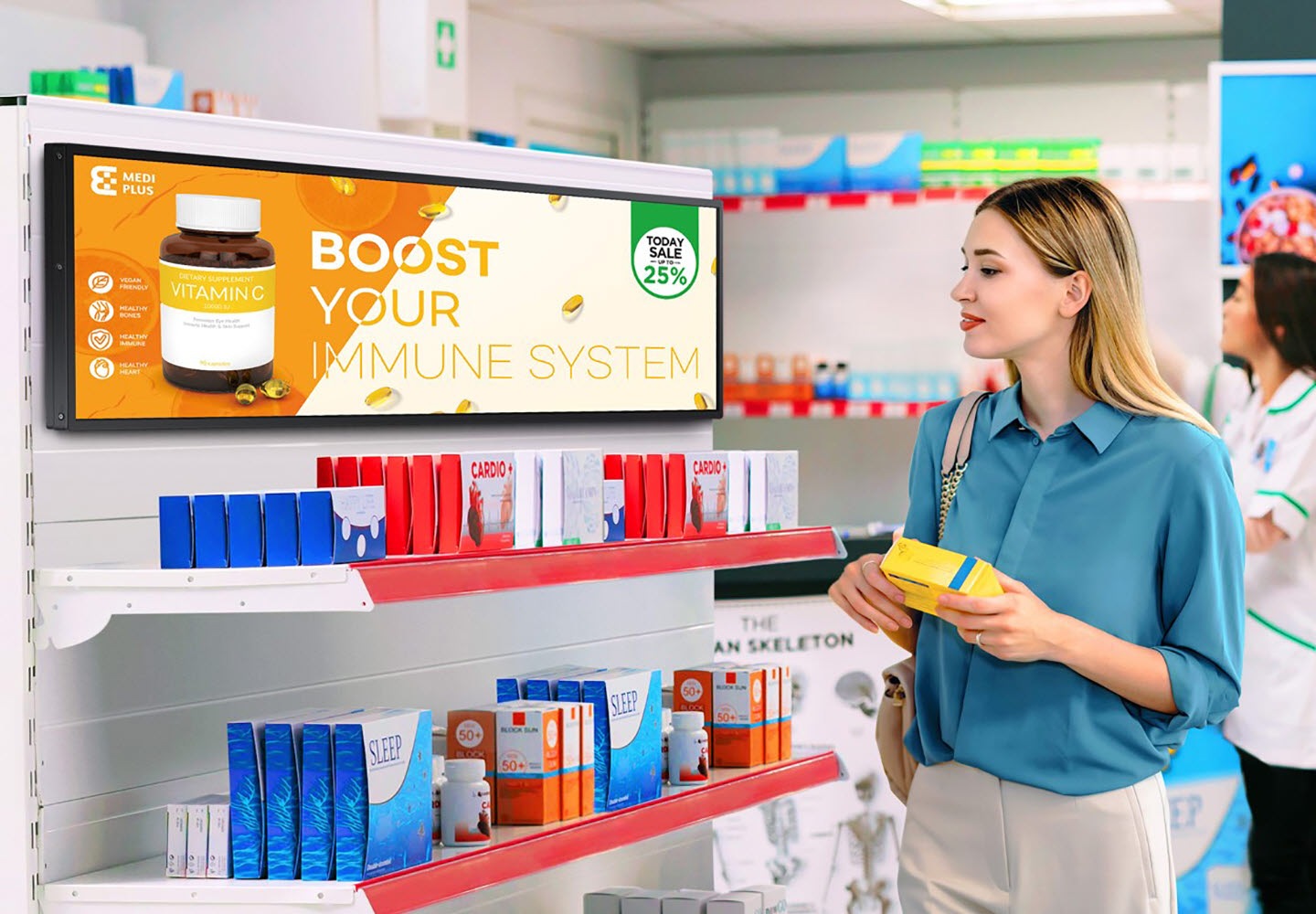

Maximize space and optimize content
16:4.5 wide screen
Versatility and cost effectiveness are necessities in digital signage. Samsung’s SH37C series, featuring a 16:4.5 wide screen stretched display format, offers the ability to effectively communicate information in small, narrow spaces.

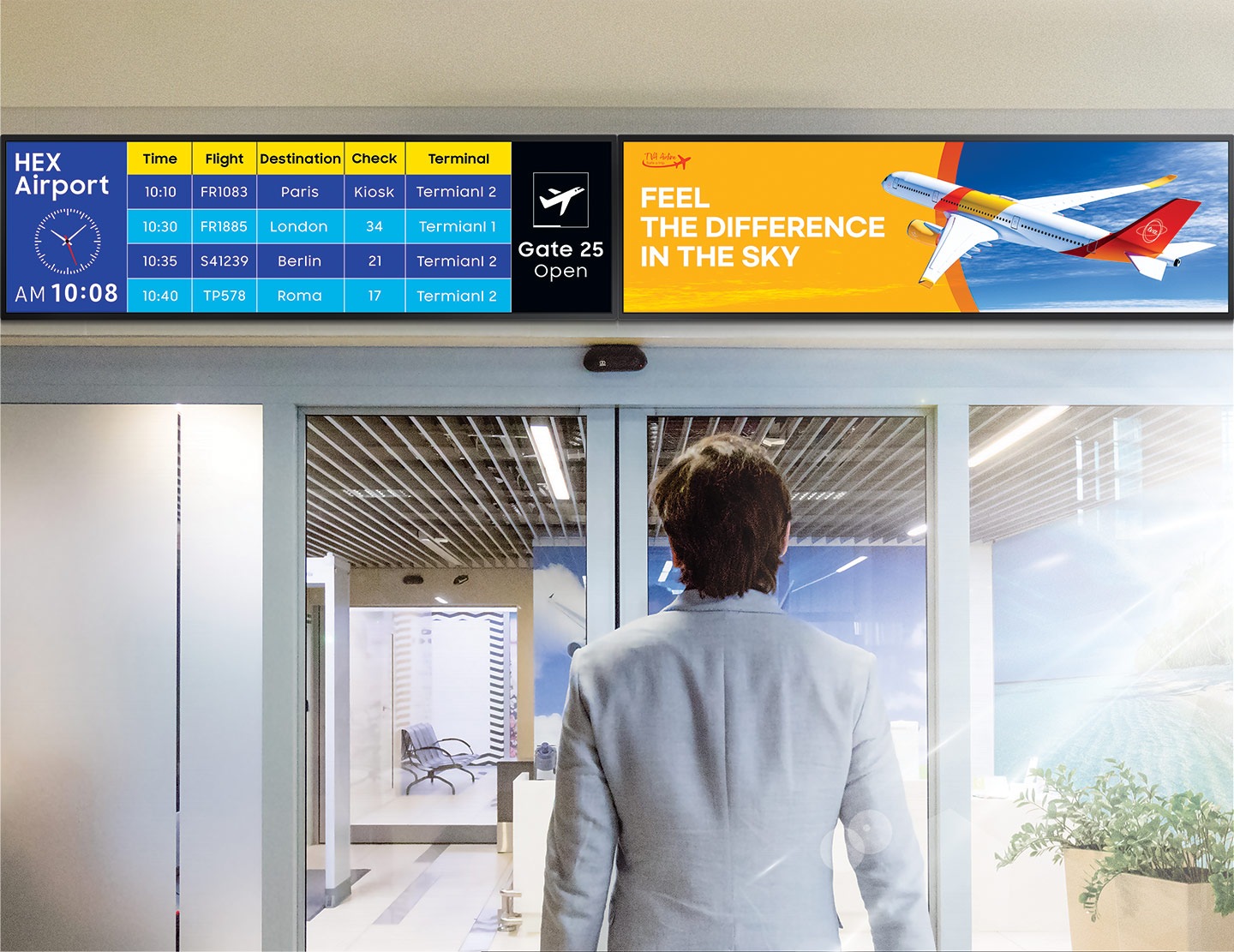

700-nit brightness makes messages easier to see
High Brightness
Deliver vibrant, realistic images through an unparalleled visual experience. Featuring brightness levels of up to 700 nits, these displays deliver clear and rich imagery to viewers.

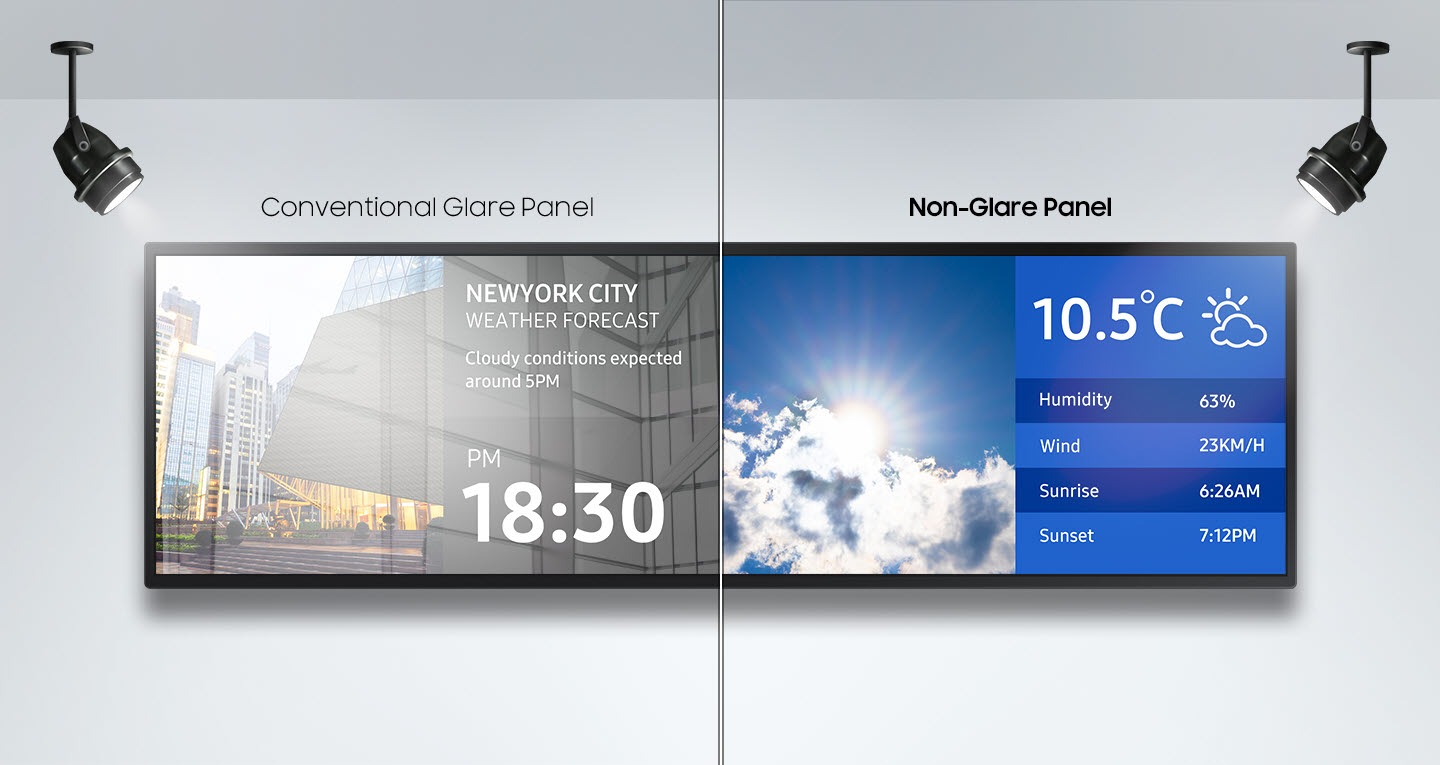

Ensure critical information is always visible
Non-glare panel
Reliable, non-glare panels improve visibility from every angle, regardless of the time of day. Now, businesses can deliver accurate information in critical locations.
* Simulated image for illustrative purposes only.

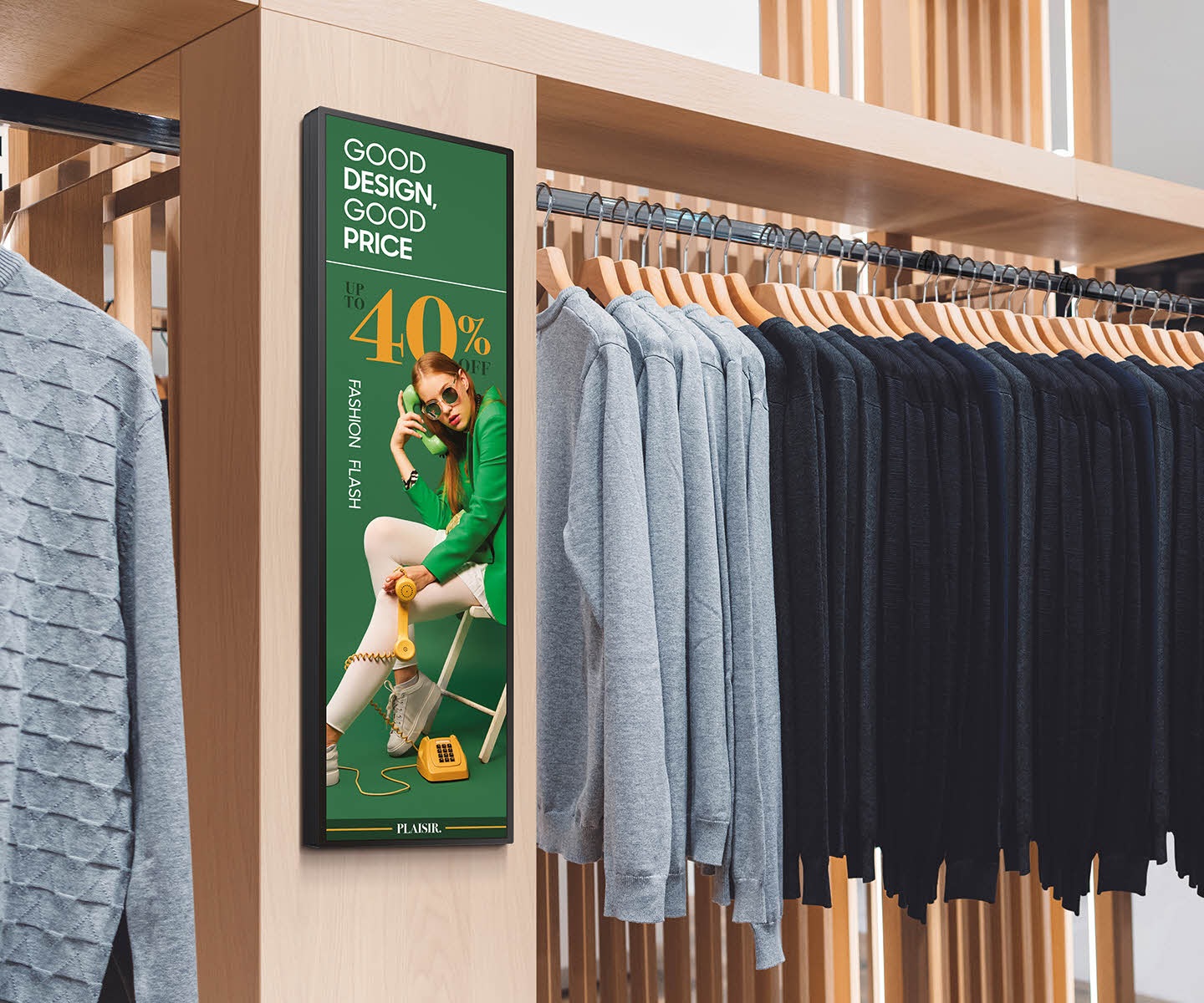

Communicate even in vertical format
Vertical Installation
Capture the attention of customers with more versatile, impactful digital signage.Visuals can easily be viewed across displays that are installed in a narrow, vertical space, creating more opportunities to communicate your key messages across environments.

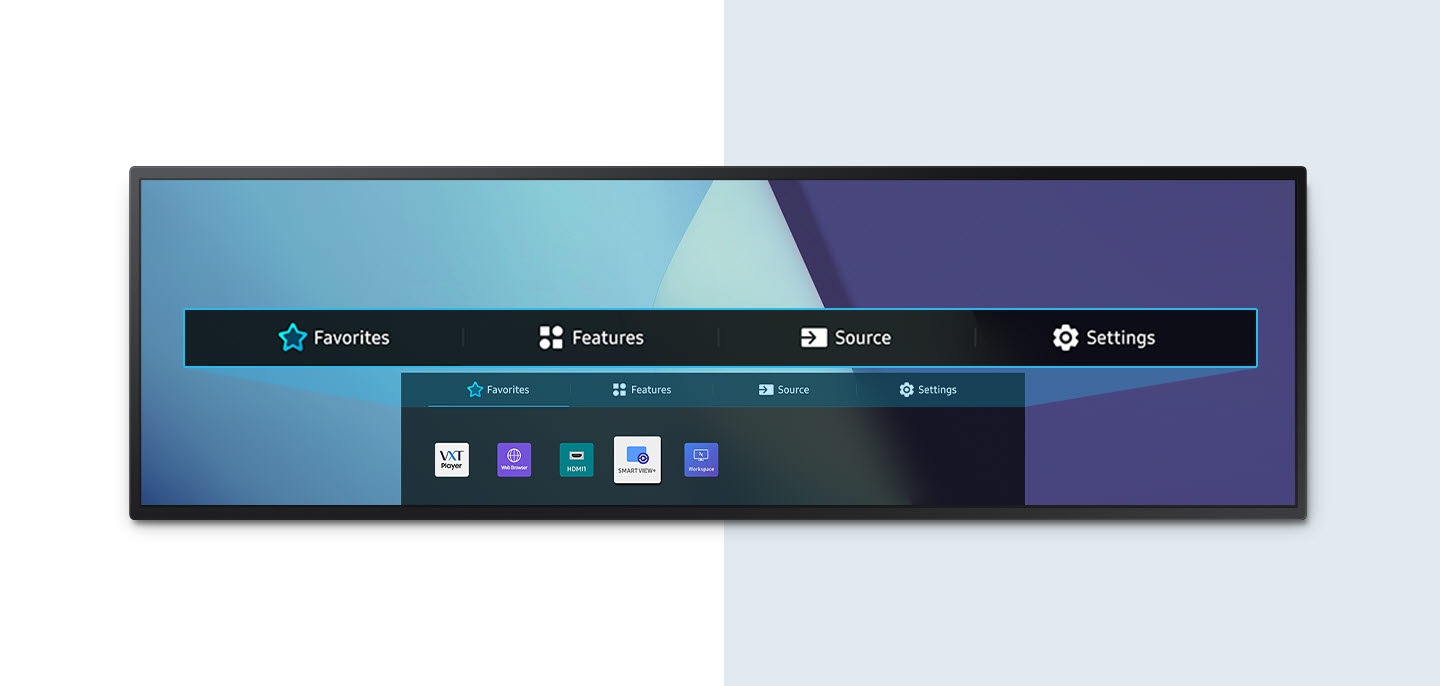

Connect with convenience
Home UI
Boast greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

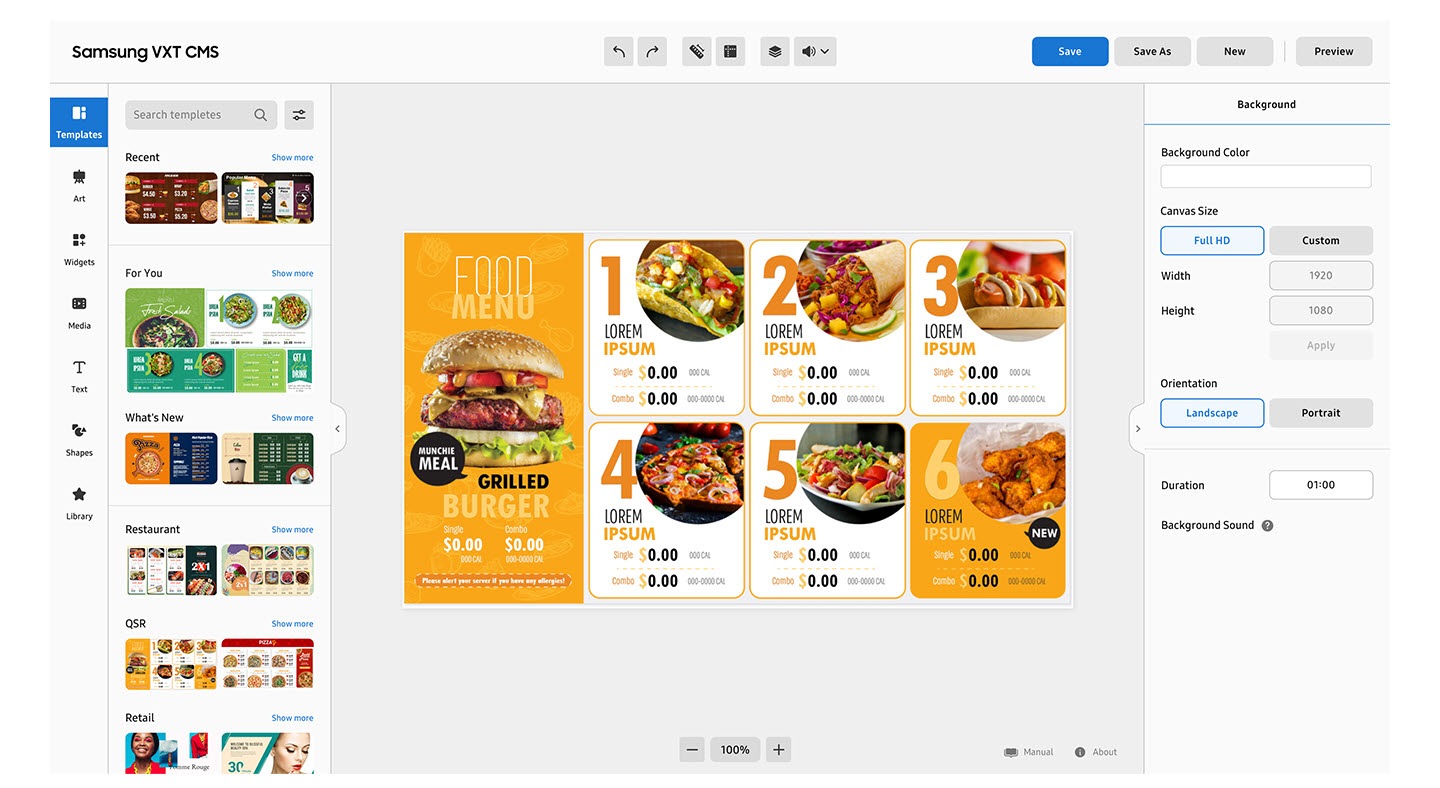

Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities. It allows users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
* Samsung VXT must be purchased separately.
Change start from small steps
Energy Star / EPEAT
SH37C has earned an ENERGY STAR 8.0 certification from the Environmental Protection Agency for its energy efficiency and an Electronic Product Environmental Assessment Tool (EPEAT) certification in recognition of its eco-conscious efforts, such as its recycled plastic use.
