SAMSUNG SPATIAL SIGNAGE 32SMHX-P
LH32SMHPBGCXXP
- My Wishlist
- Virtual 3D Display
- Ultrathin Design
- True 3D Enhancer
| Weight | 8.5 kg |
|---|---|
| Dimensions | 43.68 × 74.23 × 4.94 cm |
| Screen Size | |
| Connectivity | AUDIO OUT (x1), BT, DISPLAY PORT (x1), HDMI (x3), IR IN (x1), RJ45 IN LAN (x1), RS-232C IN (x1), RS-232C OUT (x1), USB (x2), WIFI |
| Warranty |
3D Showcase — Bring your brand to life
Key features at a glance
Deliver immersive realism through display innovation
Virtual 3D Display
Powered by Samsung’s 3D plate technology, this display goes beyond your 2D content-bringing it to life in 3D, face-to-face with your audience. Vivid details feel almost within reach, making every moment unforgettable.
Maximising the 3D effect for greater impact
True 3D Enhancer
Samsung’s enhancement solution adds subtle shadow effects to enhance depth perception, making 3D visuals more vivid and impactful.

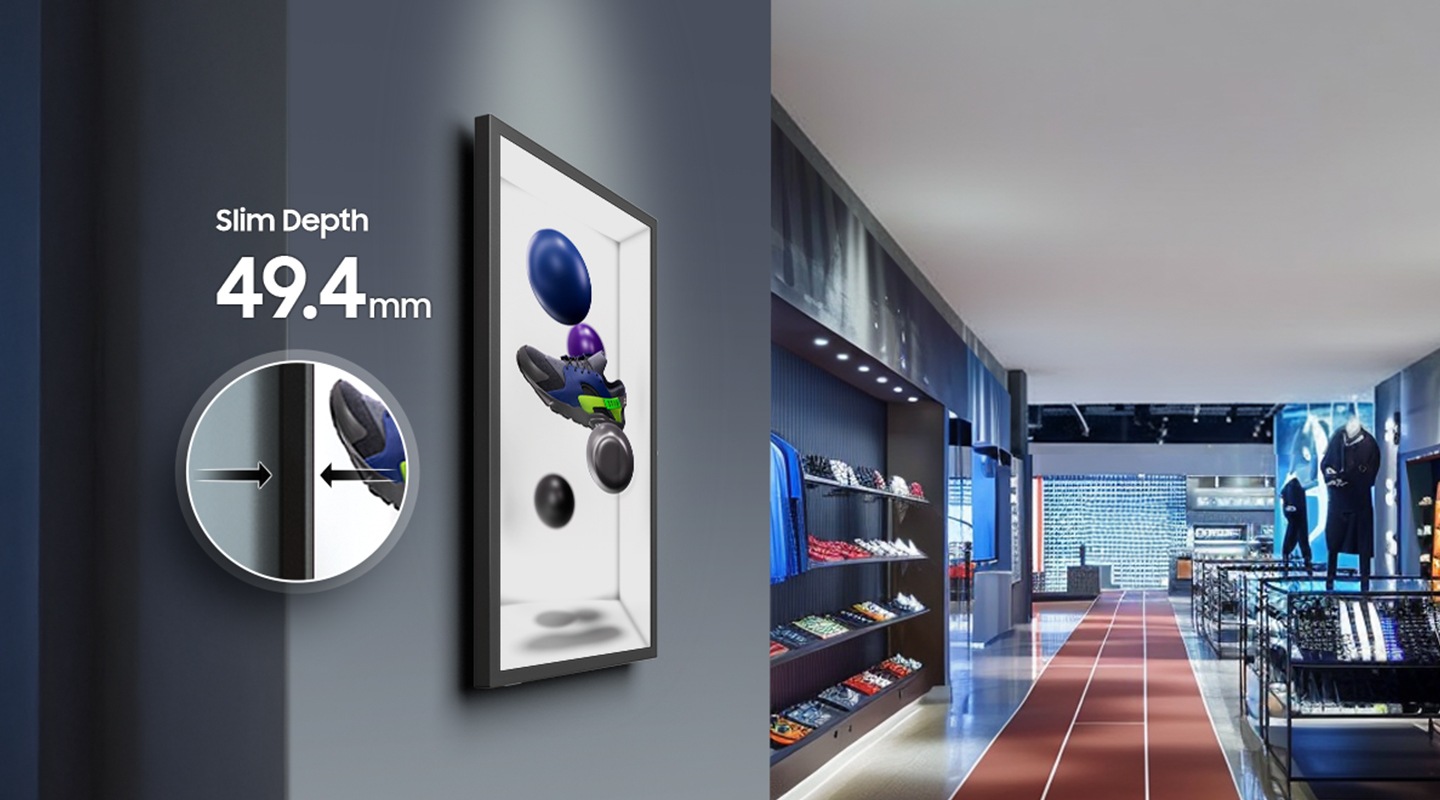

Bold visual, effortless fit
UltraThin Design
Delivering 3D visuals in a 49.4mm slim profile, this display offers the same installation ease as standard signage—lightweight, space-efficient, and ready for various environment.
View lifelike shades of colour in powerful 4K
Quantum Processor
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor, elevates lower-resolution video to UHD, providing a professional picture quality.
Maintain visibility under challenging lighting
Anti-glare
Designed with an Anti-glare panel and optimised haze level, the display reduces reflections from indoor lighting and sunlight. In bright retail spaces or open offices, your content stays clear and easy to see.
Change the way your display is managed
Samsung VXT
The cloud-based Samsung VXT brings together content management and remote device management capabilities. Remotely manage hardware settings and troubleshoot issues while creating and deploying content effortlessly with no previous training needed.
Empower your business with smart control
SmartThings Pro
SmartThings Pro brings IoT connectivity into Samsung signage, enabling seamless integration with other smart devices across business environments. From lighting and appliances to building systems, signage becomes part of a connected ecosystem—controlled, monitored, and automated through a single platform.
Specification
Display
Diagonal Size
32″
Resolution
FHD (1920 x 1080)
Brightness (Typ)
500 nit
Viewing Angle (H/V)
178/178
H-Scanning Frequency
30 – 81 kHz
V-Scanning Frequency
24 – 75 Hz
Operation Time Support
24/7
Panel Type
VA
Pixel Pitch (HxV)
0.36375 x 0.36375 mm
Contrast Ratio
4,000:1
Response Time
8ms (GTG)
Glass Haze
25%
Maximum Pixel Frequency
148.5 MHz
Contrast Ratio (Dynamic)
Mega
Connectivity
HDMI In
3
Version of HDMI
2
Version of HDCP
2.2
IR In
Yes
Audio Out
Stereo Mini Jack
RS232 Out
Yes
WiFi
Yes
DP In
1
Version of DP
1.2
USB
2
Audio In
No
RS232 In
Yes
RJ45 In
Yes
Yes* (for Mouse and Keyboard)
Power
Power Supply
AC100-240V 50/60Hz
Power Consumption (Sleep Mode)
0.5 W
Power Consumption (On Mode)
100 W
Dimension
Set Dimension (WxHxD)
436.8 x 742.3 x 49.4 mm
Package Dimension (WxHxD)
826.0 x 521.0 x 130.0 mm
Weight
Set Weight
8.5 kg
Package Weight
10.5 kg
Operation Conditions
Temperature
0 ~ 40 ℃
Humidity
10 ~ 80 (Non-Condensing)
Mechanical Specification
VESA Mount
100 x 100 mm
Bezel Color
BLACK
Bezel Width
19.4
Frame Material
Non-Glossy
SoC
OS Version
Tizen 7.0
Flash Memory Size
16GB
Certification and Compliance
EMC
Class A
Safety
60950-1, 62368-1
